ORM – Operating Room Module
Description

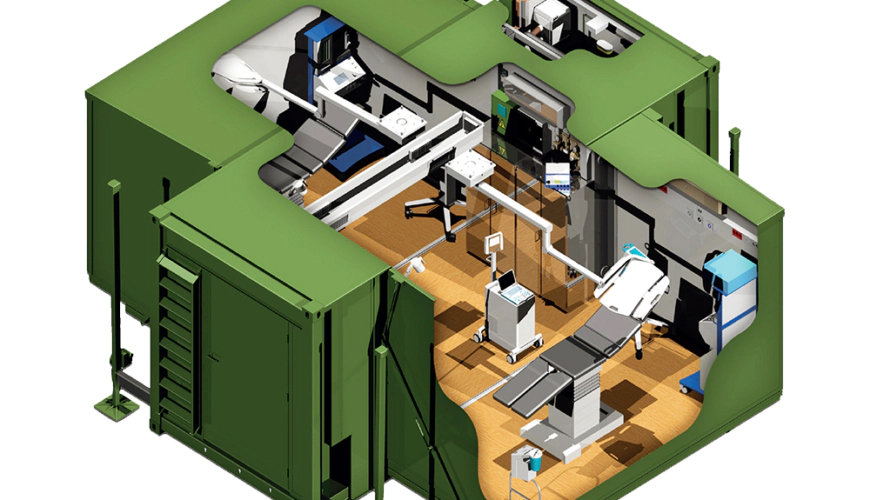

The ORM is equipped with two workstations, allowing up to eight team members to work on a single surgical team.
Included in every ORM are operating lights and tables, anaesthetic equipment, suction, vital signs monitoring and equipment for emergency orthopaedic and surgical procedures. ORM is equipped with an Automated Area Disinfection ORM has a built-in generator, meaning it can work off support power in the most trying of circumstances. Built-in oxygen, medical air and power support allow ORM to operate in complete autonomy. The unit has built-in levelling legs, which makes loading and unloading a unit from a truck or barrow possible without extra cranes or lifting units.
With ISO 1CC Certification, ORM is designed for easy transportation via sea, land, and air.
Specification
| Gross weight: | 12 000 kg |
| Load capacity: | 6 000 kg |
| Dimensions according to ISO668 | 1CC (20ft) |
| Total length: | 6058 mm |
| Height: | 2591 mm |
| Width in transport: | 2438 mm |
| Width when opened: | 6795 mm |
| Insulation: | 50 mm XPS |
| Floor area when expanded: | ~34 m2 |
| Standards: | ISO 1161: 2016, ISO 1496-1-5: 2013, CSC Certificated |
| Operating temperature: | from -40°C to +50°C |
| Deployment and repack time: | 20 minutes |
| Equipment: | 10 kW generator, UPS, IT earthing system, Anaesthesia machine, Operating table with gel support pads, Surgical chairs, Operating lightsl, Monitor with defibrillator, Perfusors, Aspirator, Infusion warmer, Instrument table, HF device (Electrical Coagulation Knife), Oxygen generator, Medical air compressor, Infusion warming cabinet, HEPA ventilation, Humidity and temperature control, UV air purifier, Air conditioning, Diagnostic touch screen display, Refrigerator, Electrical and diesel heating |
