DSM – Dental and Stomatological Module
Description
The DSM dental module is designed to provide stomatological aid and diagnostics.

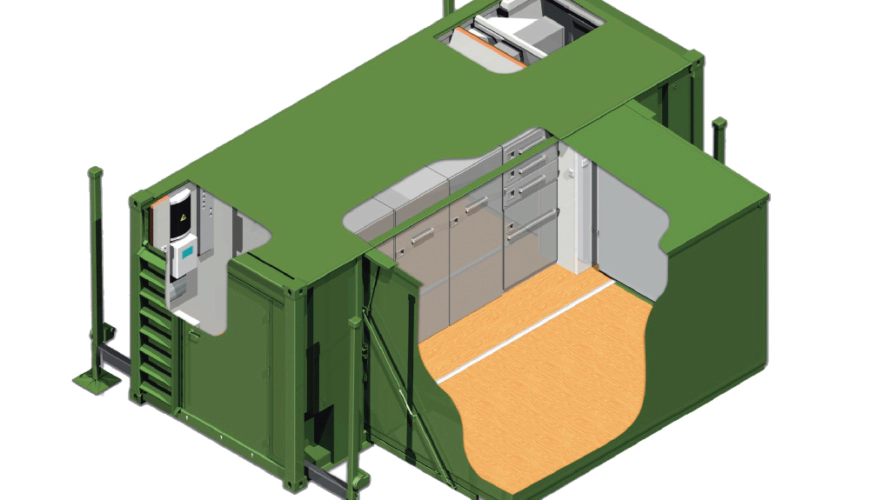

DSM includes one dental workstation combined with all the necessary services like instrument washing, sterilization, intraoral x-ray and all the other necessities for proper stomatological care.
Module can preserve self-sustainability up to 36h without an external electric or diesel power source.
The unit has built-in levelling legs, which makes loading and unloading a unit from a truck or barrow possible without extra cranes or lifting units. With ISO 1CC Certification, all MMH modules are designed for easy transportation via sea, land, and air.
Specification
| Gross weight: | 12 000 kg |
| Load capacity: | 6 000 kg |
| Dimensions according to ISO668 | 1CC (20ft) |
| Total length: | 6058 mm |
| Height: | 2591 mm |
| Width in transport: | 2438 mm |
| Width when opened: | 4617 mm |
| Insulation: | 50 mm XPS |
| Floor area when expanded: | ~28 m2 |
| Standards: | ISO 1161: 2016, ISO 1496-1-5: 2013, CSC Certificated |
| Operating temperature: | from -40°C to +50°C |
| Deployment and repack time: | 10 minutes |
| Equipment: | 10 kW generator, Dental workstation, Autoclave, Washer-disinfector, Intraoral x-ray, ,Refrigerator (+2 – +8),Sterile storage space, PC workstation, Air conditioning, Electrical and diesel heating |
